HF RFID Cards
HF RFID Cards is commonly used for ticketing, payment, and data transfer applications.
If a system operates at a higher frequency, it generally has faster data transfer rates and longer read ranges than lower frequency systems.
The HF band ranges from 3 to 30 MHz. Most HF RFID systems operate at 13.56 MHz with read ranges between 10 cm and 1 m. Our HF13.56MHZ Cards are mainly made up of two standards, ISO14443 and ISO15693. ISO14443 is often at public transportation cards and access cards, which is known as identification with near distance, the low price and good confidentiality. And for ISO15693, the biggest advantage lies in his recognition efficiency.
Among HF RFID Cards, other HF standards include the ISO/IEC 14443 A and ISO/IEC 14443 standards for MIFARE technology, which used in smart cards and proximity cards, and the JIS X 6319-4 for FeliCa, which is a smart card system commonly used in electronic money cards. |
|
| |
| :: HF 13.56MHz Card (36 Products) |
Page 3 / 3 |
 |
 |
 |
 |
NTAG213
NTAG213 has been developed by NXP Semiconductors as standard NFC tag ICs to be used in mass market applications such as retail, gaming and consumer electronics, in combination with NFC devices or NFC compliant Proximity Coupling Devices. NTAG213 is designed to fully comply to NFC Forum Type 2 Tag and ISO/IEC14443 Type A specifications.
96-EPC Bits, extensible to 480 Bits
512 User Bits
64 Bit Unique TID
|
 |

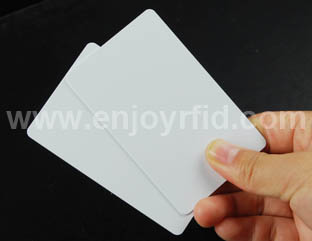

NTAG215
NTAG215 has been developed by NXP Semiconductors as standard NFC tag ICs to be used in mass market applications such as retail, gaming and consumer electronics, in combination with NFC devices or NFC compliant Proximity Coupling Devices. NTAG215 is designed to fully comply to NFC Forum Type 2 Tag and ISO/IEC14443 Type A specifications.
96-EPC Bits, extensible to 480 Bits
512 User Bits
64 Bit Unique TID
|
 |
mifare ultralight EV1
MIFARE Ultralight EV1 is the next generation of paper ticketing smart card IC for limited-use
applications that offers solution developers and operators the maximum flexibility for their
ticketing schemes and additional security options.
96-EPC Bits, extensible to 480 Bits
512 User Bits
64 Bit Unique TID
|
 |
CR80 NXP 13.56MHz ISO/IEC 14443A Mifare Classic Smart card
NXP Semiconductors has developed the MIFARE Classic MF1S50 to be used in a contactless smart card according to ISO/IEC 14443 Type A.
Manufacturer programmed 7-byte UID or 4-byte NUID identifier for each device
1 kB, organized in 16 sectors of 4 blocks (one block consists of 16 byte)
|
 |
1Kbytes ISO14443A Mifare RFID card
> Operating distance: Up to 100mm (depending on antenna geometry)
> Operating frequency: 13.56 MHz
> Data transfer: 106 kbit/s
> Data integrity: 16 Bit CRC, parity, bit coding, bit counting
> 1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each (one block consists of 16 byte)
> User definable access conditions for each memory block
|
 |
Mifare 1K ISO14443A 13.56Mhz PVC card
> Operating distance: Up to 100mm (depending on antenna geometry)
> Operating frequency: 13.56 MHz
> Data transfer: 106 kbit/s
> Data integrity: 16 Bit CRC, parity, bit coding, bit counting
> 1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each (one block consists of 16 byte)
> User definable access conditions for each memory block
|
 |
Access control Smart card NXP HF MIfare 1K RFID card
NXP Semiconductors has developed the MIFARE Classic MF1S50 to be used in a contactless smart card according to ISO/IEC 14443 Type A.
Manufacturer programmed 7-byte UID or 4-byte NUID identifier for each device
1 kB, organized in 16 sectors of 4 blocks (one block consists of 16 byte)
|
 |

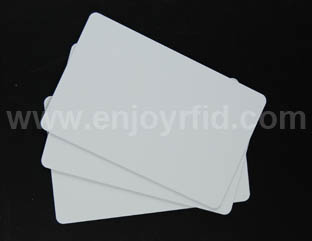

NXP IC Smart card 13.56Mhz Mifare Ultralight RFID PVC card
MF0ICU1 is connected to a coil with a few turns. The MF0ICU1 fits the TFC.0 (Edmondson) and TFC.1 (ISO) ticket formats as defined in BS EN753-2.
- 7-byte UID in accordance with ISO/IEC 14443-3 for each device
- 32-bit user definable One-Time Programmable (OTP) area
|
 |

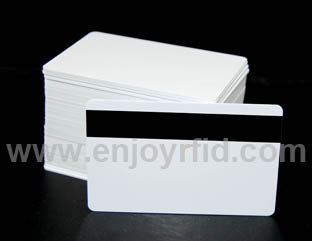

NXP Mifare 1k RFID card with HICO 2750oe Magnetic stirp
NXP Semiconductors has developed the MIFARE Classic MF1S50 to be used in a contactless smart card according to ISO/IEC 14443 Type A.
Manufacturer programmed 7-byte UID or 4-byte NUID identifier for each device
1 kB, organized in 16 sectors of 4 blocks (one block consists of 16 byte)
|
 |

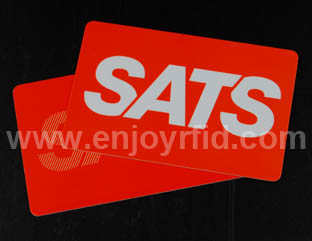

Philips 13.56MHz HF Mifare 1k 1024bytes IC card
NXP Semiconductors has developed the MIFARE Classic MF1S50 to be used in a contactless smart card according to ISO/IEC 14443 Type A.
Manufacturer programmed 7-byte UID or 4-byte NUID identifier for each device
1 kB, organized in 16 sectors of 4 blocks (one block consists of 16 byte)
|
 |
NXP 7bytes UID ISO14443A Mifare 1K RFID card
NXP Semiconductors has developed the MIFARE Classic MF1S50 to be used in a contactless smart card according to ISO/IEC 14443 Type A.
Manufacturer programmed 7-byte UID or 4-byte NUID identifier for each device
1 kB, organized in 16 sectors of 4 blocks (one block consists of 16 byte)
|
 |
NXP Proximity 4K Mifare chip NXP HF Card HICO 2750oe
>Fully ISO/IEC 14443Type A 1-3 compliant, ensuring a broad marketplace of solution developers and providers
> Available with 7 byte unique identifier (7B UID) or 4 byte non-unique identifier (4B NUID)
> Versatile product portfolio, offering an optimized price-performance ratio
> 4 KB EEPROM
|
 |
Philips Mifare 4K 4096bytes EEPROM PVC Card
>Fully ISO/IEC 14443Type A 1-3 compliant, ensuring a broad marketplace of solution developers and providers
> Available with 7 byte unique identifier (7B UID) or 4 byte non-unique identifier (4B NUID)
> Versatile product portfolio, offering an optimized price-performance ratio
> 4 KB EEPROM
|
 |

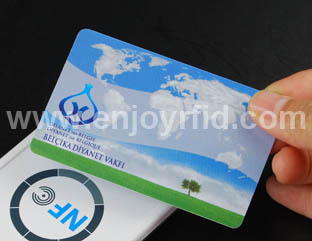

Philips Mifare Ultralight 64bytes PET Card
MF0ICU1 is connected to a coil with a few turns. The MF0ICU1 fits the TFC.0 (Edmondson) and TFC.1 (ISO) ticket formats as defined in BS EN753-2.
- 7-byte UID in accordance with ISO/IEC 14443-3 for each device
- 32-bit user definable One-Time Programmable (OTP) area
- Field programmable read-only locking function per page
|
|
|
