| :: NDEF NFC Card (7 Products) |
 |
NDEF NFC Card Ntag203 ISO14443A 13.56MHz card
NXP NTAG203 - NFC Forum Type 2 Tag compliant IC - to be used with NFC enabled devices according to NFC Forum technical specifications.
--168 bytes of total memory, divided in 42 pages (4 bytes each)
--144 bytes of user r/w memory area, divided in 36 pages (4 bytes each)
|
 |
NFC type 2 tag 64bytes NFC Card Mifare Ultraligh
MF0ICU1 is connected to a coil with a few turns. The MF0ICU1 fits the TFC.0 (Edmondson) and TFC.1 (ISO) ticket formats as defined in BS EN753-2.
- 7-byte UID in accordance with ISO/IEC 14443-3 for each device
- 32-bit user definable One-Time Programmable (OTP) area
- Field programmable read-only locking function per page
|
 |
NDEF type 2 tag NFC card Mifare Ultralight C
The anticollision function is based on an IC individual serial number called Unique IDentification. The UID of the MF0ICU2 is 7 bytes long and supports cascade level 2 according to ISO/IEC 14443-3.
- 3DES Authentication
- Anti-cloning support by unique 7-byte serial number for each device
- 32-bit user programmable OTP area
- Field programmable read-only locking function per page for first 512-bit
|
 |

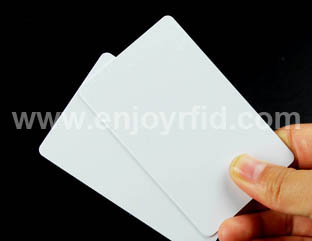

Topaz IC IRT5011 120bytes NFC type 1 tag ISO/IEC 21481
- Topaz IC can be used in NFC Forum Tags/Smartposter/ One-touch Setup applications as well as general RFID
- Targeted for operation with NFC devices which work to ISO/IEC 18092 (NFCIP-1) and/or ISO/IEC 21481 (NFCIP-2)
- Designed to be compatible with the ISO/IEC 14443:2001 parts 2 and 3
- ISO/IEC 14443 type A modulation scheme
|
 |

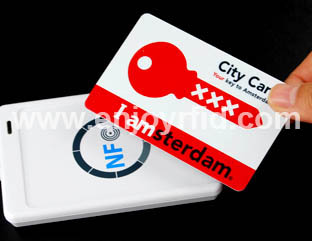

BCM20203T512 IC 512bytes NFC type 1 ISO14443A card
Data communications are protected by 16-bit CRC integrity checking
EEPROM based user read/write memory area organized as blocks of 8 bytes
7 bytes of Unique Identification (UID) number for use in data authentication/anticloning
480 bytes of user read/write memory
64 bits (8 bytes) of OTP memory
|
 |

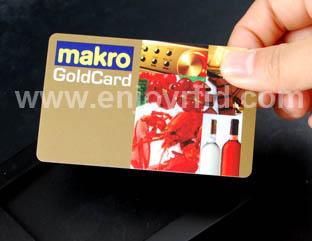

NFC type 4 tag Mifare DESFIRE EV1 Card
MIFARE DESFire EV1 is ideal for solution developers and providers wanting to combine and support multiple applications on one contactless smart card. It fully complies with the requirements for fast and secure data transmission, flexible memory organization, and interoperability with existing infrastructure.
|
|
|
